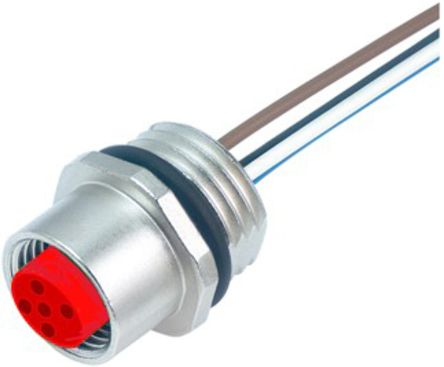

RS PRO Straight M12 to Unterminated Industrial Automation Cable Assembly, 4 Core , 200mm Cable; 174-7870
Mã kho: 1747870
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 200mm |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Current Rating | 0.166666666666667 |
| IP Rating | IP67 |
| Voltage Rating | 250 V ac/dc |
| Cable Shape | Round |
| Cross Sectional Area | 0.34 mm² |
| Outer Diameter | 13.5mm |
| Connector A Housing Gender | Socket |
| Minimum Bend Radius | 5 x 13.5 mm |
| American Wire Gauge | 22 |
| Insulation Material | PP |
| Standards Met | EN 60529, IEC90664-1, UL Recognized |
| Maximum Operating Temperature | +85°C |
| Shielding | Unshielded |
| Minimum Operating Temperature | -25°C |
