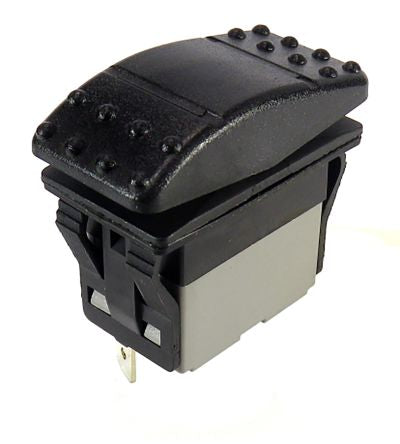

RS PRO Illuminated Single Pole Double Throw (SPDT), Momentary Rocker Switch Panel Mount; 174-8309
Mã kho: 1748309
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | Momentary |
| Panel Cut Out Width | 37mm |
| Panel Cut Out Height | 21.1mm |
| Contact Current Rating | 16 A @ 125 → 250 V ac, 16 A @ 30 V dc, 20 A @ 125 → 250 V ac |
| Illuminated | Yes |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP67 |
| Terminal Type | Quick Connect |
| Legend Text | On |
| Actuator Shape | Rectangular |
| Case Material | Polyamide |
| Minimum Operating Temperature | -20°C |
| Contact Resistance | 20mΩ |
| Operating Temperature Range | -20 → +85°C |
| AC Voltage Rating | 125 → 250V |
| DC Voltage Rating | 30V |
| Panel Cut Out Size | 21.1 x 37mm |
| Contact Material | Copper |
| Maximum Operating Temperature | +85°C |
