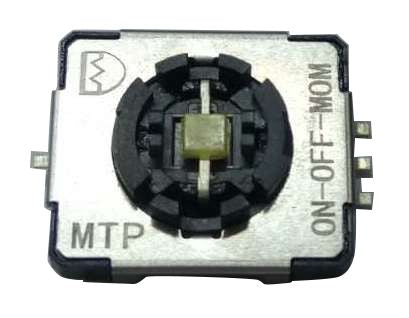

RS PRO MTP, 3 Position Single Pole Single Throw (SPST) Rotary Switch, 50 mA, Solder; 175-9863
Mã kho: 1759863
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Series | MTP |
| Contact Current Rating | 50 mA |
| Number of Switch Positions | 3 |
| Number of Contacts | 1 |
| Voltage Rating | 12V dc |
| Depth | 13.45mm |
| Width | 15.15mm |
| Dimensions | 15.15 x 13.45 x 5.55mm |
| Mounting Type | PCB |
| Terminal Type | Solder |
| Actuator Colour | Black |
| Height | 5.55mm |
| Case Material | Stainless Steel |
| Contact Material | Copper Over Silver |
| Mechanical Life | 10000 cycles, 30000 cycles |
| Illuminated | Yes |
| Angle of Throw | 80° |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
