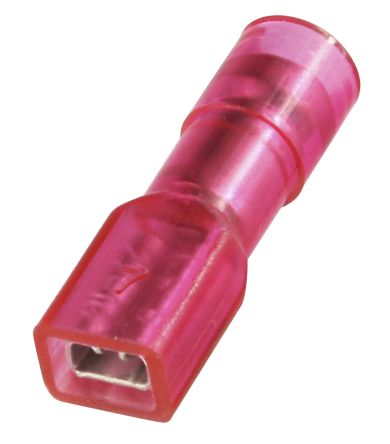

RS PRO Insulated Crimp Quick Disconnect Terminal, 0.5 x 2.8mm Tab Size; 178-8292
Mã kho: 1788292
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG |
| Minimum Wire Size mm² | 0.5mm² |
| Tab Size | 0.5 x 2.8mm |
| Maximum Wire Size mm² | 1.5mm² |
| Insulation | Insulated |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Insulation Material | PC |
| Contact Material | Brass |
| Overall Length | 19.5mm |
| Colour | Red |
| Tab Thickness | 0.5mm |
| Tab Width | 2.8mm |
