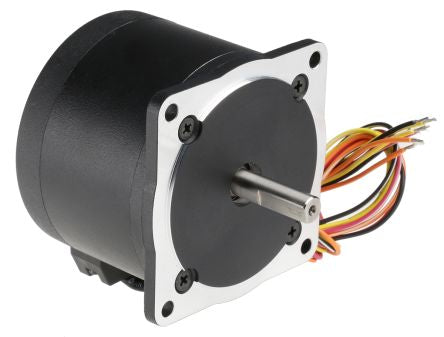

RS PRO Parallel, Series, Unipolar Hybrid Stepper Motor 1.8°, 2.3 (Unipolar) nm, 2.8 (Parallel) nm, 2.8 (Series) nm; 180-5290
Mã kho: 1805290
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Step Angle | 1.8° |
| Holding Torque | 2.3 (Unipolar) nm, 2.8 (Parallel) nm, 2.8 (Series) nm |
| Number Of Wires | 8 |
| Voltage Rating | 2.54 V, 3.64 V, 5 V |
| Frame Size | 82.5 x 82.5mm |
| Stepper Motor Type | Hybrid |
| Shaft Diameter | 9.52mm |
| Current Rating | 1.96 (Series) A, 2.8 (Unipolar) A, 3.92 (Parallel) A |
| Winding Arrangement | Parallel, Series, Unipolar |
| Shaft Length | 28.9mm |
| Depth | 67mm |
| Resistance Per Phase | 0.65 (Parallel) , 1.3 (Unipolar) , 2.6 (Series) |
