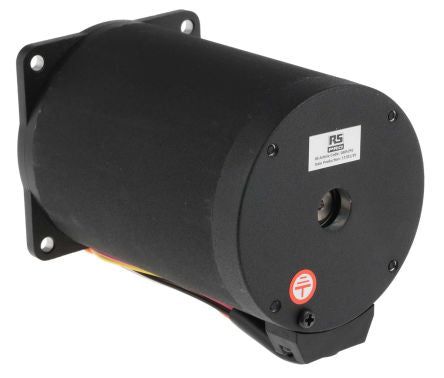

RS PRO Parallel, Series, Unipolar Hybrid Stepper Motor 1.8°, 6.2 (Unipolar) nm, 7.6 (Parallel) nm, 7.6 (Series) nm; 180-5292
Mã kho: 1805292
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Step Angle | 1.8° |
| Holding Torque | 6.2 (Unipolar) nm, 7.6 (Parallel) nm, 7.6 (Series) nm |
| Number Of Wires | 8 |
| Voltage Rating | 3.47 V, 4.97 V, 6.95 V |
| Frame Size | 82.5 x 82.5mm |
| Stepper Motor Type | Hybrid |
| Shaft Diameter | 9.52mm |
| Current Rating | 2.45 (Series) A, 3.5 (Unipolar) A, 4.9 (Parallel) A |
| Winding Arrangement | Parallel, Series, Unipolar |
| Shaft Length | 28.9mm |
| Depth | 125mm |
| Resistance Per Phase | 0.71 (Parallel) Ω, 1.42 (Unipolar) Ω, 2.84 (Series) Ω |
