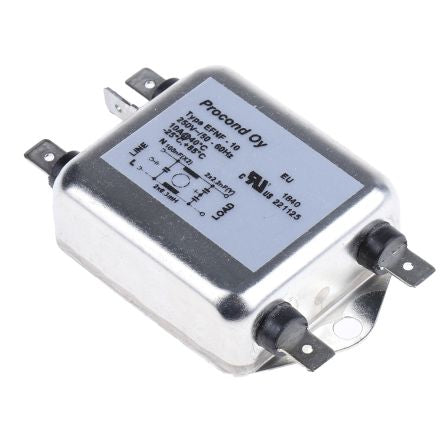

RS PRO EFNF Series 10A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals; 209-257
Mã kho: 209257
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Series | EFNF |
| Number of Stages | Single Stage |
| Operating Frequency | 400Hz |
| Length | 46mm |
| Depth | 75mm |
| Height | 19mm |
| Capacitance | 100 nF, 2200 x 2 pF |
| Inductance | 0.3 x 2 mH |
| Dimensions | 46 x 75 x 19mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.2 mA |
| Maximum Operating Temperature | +85°C |
