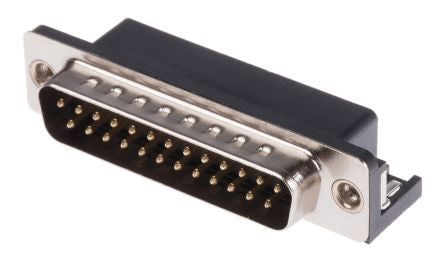

RS PRO 25 Way Right Angle Through Hole PCB D-sub Connector Plug, 2.77mm Pitch, with 4-40 UNC, Threaded Insert; 239-5883
Mã kho: 2395883
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.77mm |
| Mounting Hardware | Threaded Insert, 4-40 UNC |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | PET |
| Voltage Rating | 350 V ac/dc |
| Length | 53.04mm |
| Width | 18.4mm |
| Depth | 12.5mm |
| Dimensions | 53.04 x 18.4 x 12.5mm |
| Contact Material | Brass |
| Maximum Operating Temperature | +105°C |
| Contact Plating | Gold |
| Minimum Operating Temperature | -55.0°C |
