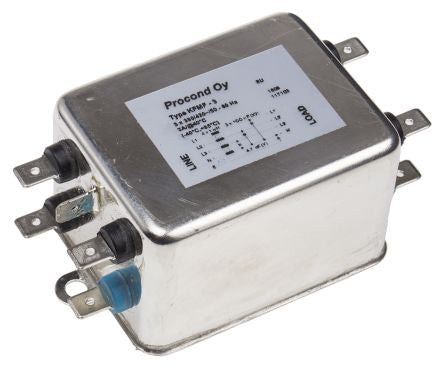

RS PRO KFM Series 3A 420 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals; 240-258
Mã kho: 240258
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 420 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Series | KFM |
| Operating Frequency | 400Hz |
| Length | 52mm |
| Depth | 90mm |
| Height | 40mm |
| Capacitance | 4.7 nF, 100 nF |
| Inductance | 1 x 4 mH |
| Dimensions | 52 x 90 x 40mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.5 mA |
| Maximum Operating Temperature | +85°C |
