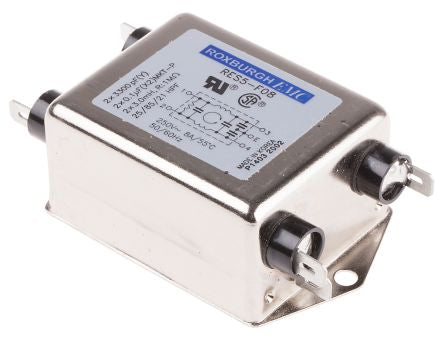

RS PRO RES5F Series 8A 250 V ac/dc 50/60Hz Chassis Mount RFI Filter, with Fast-On Terminals, Single Phase; 386-4065
Mã kho: 3864065
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 8A |
| Maximum Voltage Rating | 250 V ac/dc |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | RES5F |
| Operating Frequency | 50/60Hz |
| Length | 83.7mm |
| Depth | 51.8mm |
| Capacitance | 3.3 nF, 100 nF |
| Height | 32mm |
| Inductance | 3 mH |
| Dimensions | 83.7 x 51.8 x 32 |
| Leakage Current | 0.5 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Resistance | 1MΩ |
