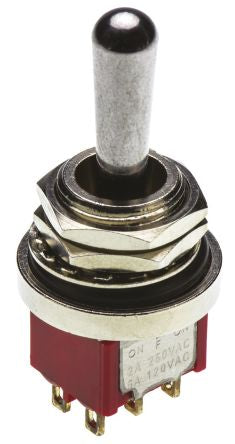

RS PRO Double Pole Double Throw (DPDT) Toggle Switch, On-Off-On, Panel Mount; 394-437
Mã kho: 394437
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-Off-On |
| Contact Current Rating | 5 A @ 28 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 11.91mm |
| Actuator Length | 17.56mm |
| Actuator Material | Chromium Plated Brass |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -30°C |
| Panel Cut Out Size | 11.91mm |
| Operating Temperature Range | -30 +85°C |
| Mechanical Life | 40000Operations |
| Maximum Operating Temperature | +85°C |
| Standards Met | RoHS & Lead Free |
| Contact Material | Silver |
