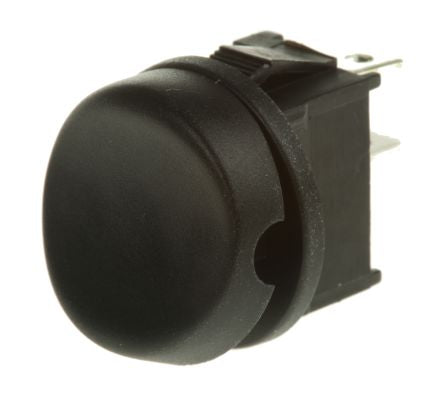

RS PRO Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount; 419-760
Mã kho: 419760
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Latching |
| Panel Cut Out Width | 19.8mm |
| Panel Cut Out Height | 13mm |
| Panel Cut Out Diameter | 22.5mm |
| Contact Current Rating | 10 A @ 125 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Round |
| Maximum Operating Temperature | +85°C |
| AC Voltage Rating | 125 V, 250 V |
| Contact Resistance | 50mΩ |
| Minimum Operating Temperature | -20°C |
| Contact Material | Silver Plated Brass |
| Panel Cut Out Size | 13 x 19.8mm |
| Operating Temperature Range | -20 → +85°C |
| Case Material | Nylon |
