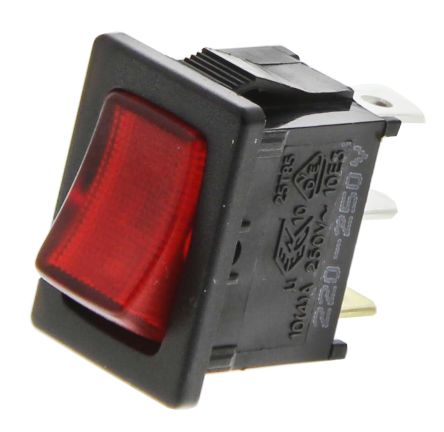

RS PRO Illuminated Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount; 419-782
Mã kho: 419782
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 13mm |
| Panel Cut Out Height | 19.2mm |
| Contact Current Rating | 10 A @ 125 V ac |
| Illuminated | Yes |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Case Material | Nylon |
| AC Voltage Rating | 125 V, 250 V |
| Contact Material | Silver |
| Minimum Operating Temperature | -20°C |
| Contact Resistance | 50mΩ |
| Panel Cut Out Size | 19.2 x 13mm |
| Operating Temperature Range | -20 → +85°C |
| Maximum Operating Temperature | +85°C |
