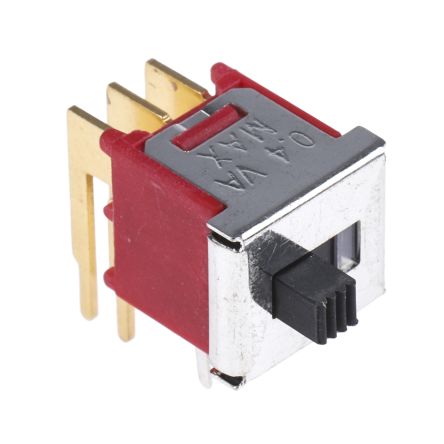

PCB Slide Switch DPDT On-On 400 mA @ 20 V Slide; 429-492
Mã kho: 429492
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 400 mA @ 20 V |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Length | 10.16mm |
| Width | 9mm |
| Depth | 10.03mm |
| Dimensions | 10.16 x 9 x 10.03mm |
| Contact Resistance | 20mΩ |
| Mechanical Life | 30000Operations |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -30 → +85°C |
| Voltage Rating | 20V ac/dc |
| Actuator Material | Nylon |
| Minimum Operating Temperature | -30°C |
| Contact Material | Gold Plated |
