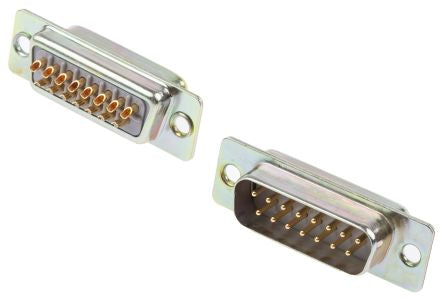

RS PRO Panel Mount, 15 Pin Standard D-Sub D-sub Connector Plug, Shell Size A, Solder Cup; 472-859
Mã kho: 472859
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | A |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 750 V ac/dc |
| Length | 39.14mm |
| Width | 14.67mm |
| Depth | 12.55mm |
| Dimensions | 39.14 x 14.67 x 12.55mm |
| Minimum Operating Temperature | -65.0°C |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold over Nickel |
