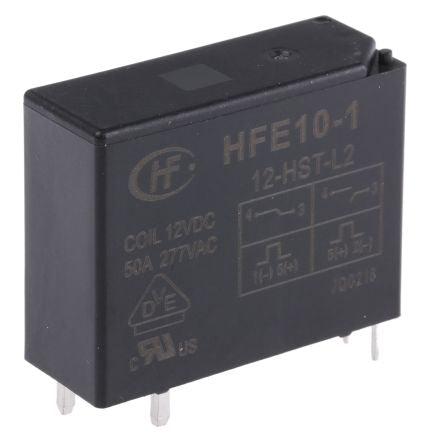

SPNO PCB Mount Latching Relay 50 A, 12V dc For Use In Power Applications; 476-577
Mã kho: 476577
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | SPNO |
| Mounting Type | PCB Mount |
| Switching Current | 50 A |
| Maximum Switching Voltage AC | 440V ac |
| Length | 39mm |
| Depth | 15mm |
| Height | 30.2mm |
| Dimensions | 39 x 30.2 x 15mm |
| Terminal Type | Through Hole |
| Application | Power |
| Coil Power | 3W |
| Isolation Coil To Contact | 4kV ac |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Standards Met | RoHS Compliant |
| Contact Material | Silver Alloy |
| Features | Capacitor Load up to 200 μF (Min Inrush Current at 500 A/10 μs), Creepage Distance 8 mm, Lamp Load up to 5000 W, Maximum Switching Capability up to 50 A, Wash Tight, 4 kV Dielectric Strength (Between Coil & Contacts) |
| Operating Temperature Range | -40 → +70°C |
| Coil Resistance | 48 Ω |
| Life | 1000000 (Mechanical) cycles |
| Maximum Switching Power AC | 12.5 kVA |
