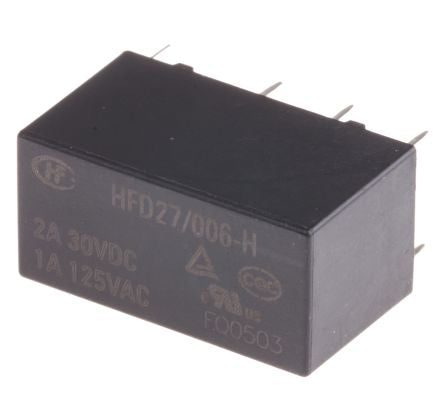

RS PRO DPDT Non-Latching Relay PCB Mount, 6V dc Coil, 2 A Subminiature DIP Relay; 476-606
Mã kho: 476606
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 6 V dc |
| Coil Power | 150mW |
| Coil Resistance | 240 Ω |
| Isolation Coil To Contact | 1.5kV ac |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 240V ac |
| Maximum Switching Voltage DC | 120V dc |
| Maximum Switching Power AC | 125 VA |
| Length | 20.2mm |
| Standards Met | CQC 02001001938, RoHS Compliant, TUV R50075362, UL E133481 |
| Depth | 10mm |
| Maximum Switching Power DC | 60 W |
| Height | 11.5mm |
