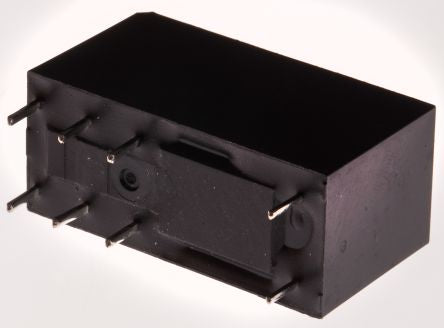

RS PRO DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 8 A Miniature Power Relay; 476-791
Mã kho: 476791
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 400mW |
| Coil Resistance | 1.44 kΩ |
| Isolation Coil To Contact | 5kV ac |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 8A |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 440V ac |
| Maximum Switching Voltage DC | 300V dc |
| Depth | 12.7mm |
| Maximum Switching Power AC | 2 kVA |
| Standards Met | CQC 02001001951, RoHS Compliant, UL E134517, VDE 116934 |
| Height | 15.7mm |
| Length | 29mm |
