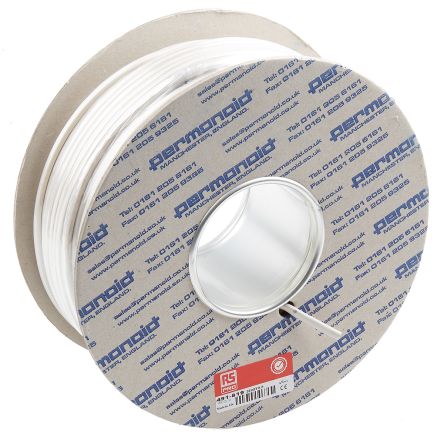

RS PRO 2 Core 0.5 mm² Mains Power Cable, White Polyvinyl Chloride PVC Sheath 100m, 3 A 300 V, 2192Y H03VVH2-F; 491-819
Mã kho: 491819
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.5 mm² |
| Sheath Colour | White |
| Current Rating | 0.125 |
| Length | 100m |
| Voltage Rating | 300 V |
| Outer Diameter | 3.35 x 5.3mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Type | 2192Y |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
| Conductor Strand Type | Stranded |
| Harmonised Code | H03VVH2-F |
| Standards Met | BS EN 50525 |
| Insulation Material | PVC |
| Conductor Resistance | 39 Ω/km |
| Conductor Material | Copper |
| Number of Strands | 16 |
| Size of Strands | 0.2 mm |
| Core Strands | 16/0.2 mm |
| American Wire Gauge | 20 AWG |
