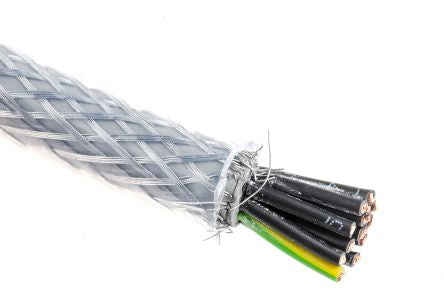

RS PRO 12 Core SY Control Cable 1 mm², 50m, Screened; 522-547
Mã kho: 522547
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 1 mm² |
| Outer Diameter | 13.8mm |
| Current Rating | 0.25 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Voltage Rating | 300/500 V |
| Core Strands | 32/0.20 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Sheath Colour | Transparent |
| Earth Cable | No |
| Screen Type | Galvanised Steel |
| Bedding Material | PVC |
| Conductor Material | Copper |
| Minimum Bend Radius | 8 x Diameter |
| Length | 50m |
| Insulation Material | PVC |
| Conductor Resistance | 21.1 Ω/km |
| American Wire Gauge | 17 |
| Screened/Unscreened | Screened |
