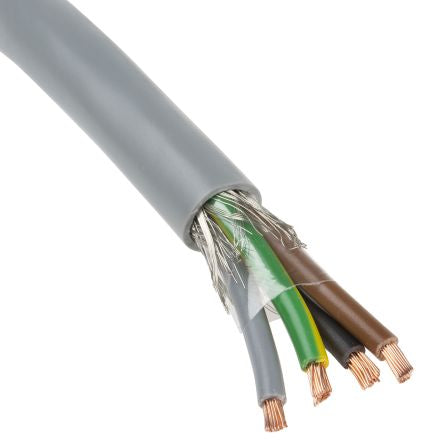

RS PRO 4 Core CY Control Cable 2.5 mm², 50m, Screened; 522-636
Mã kho: 522636
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 2.5 mm² |
| Length | 50m |
| Current Rating | 15 A |
| Outer Diameter | 9mm |
| Voltage Rating | 300/500 V |
| Sheath Colour | Grey |
| American Wire Gauge | 13 AWG |
| Earth Cable | Yes |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Sheath Material | Polyvinyl Chloride PVC |
| Screen Type | Tinned Copper Braid |
| Bedding Material | Mylar |
| Conductor Material | Copper |
| Minimum Bend Radius | 8 x Diameter |
| Core Strands | 50/0.25 mm |
| Insulation Material | PVC |
| Conductor Resistance | 8.2 Ω/km |
| Screened/Unscreened | Screened |
