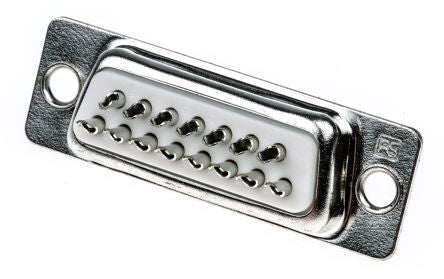

RS PRO Panel Mount, 15 Pin Standard D-Sub D-sub Connector Socket, Shell Size A, Solder Cup; 544-3783
Mã kho: 5443783
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Panel Mount |
| Pitch | 2.77mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | A |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 500 V ac |
| Length | 39.14mm |
| Width | 10.85mm |
| Depth | 12.55mm |
| Dimensions | 39.14 x 10.85 x 12.55mm |
| Minimum Operating Temperature | -55.0°C |
| Contact Material | Phosphor Bronze |
| Maximum Operating Temperature | +105°C |
| Contact Plating | Gold |
