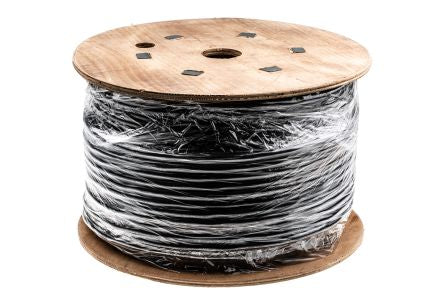

RS PRO 20 Conductor Tinned Copper Braid Industrial Cable 0.22 mm² Black PVC Sheath, 100m Reel; 660-0479
Mã kho: 6600479
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 20 |
| Cross Sectional Area | 0.22 mm² |
| Screened/Unscreened | Screened |
| Length | 100m |
| Sheath Colour | Black |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 8.6mm |
| Current Rating | 0.0416666666666667 |
| Screen Type | Tinned Copper Braid |
| Maximum Operating Temperature | +80°C |
| Core Strands | 7/0.2 mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 300 V |
| Fire Behaviour | Flame Retardant |
| Insulation Material | PVC |
| Conductor Material | Copper |
| Drain Wire | No |
| Minimum Operating Temperature | -20°C |
| Conductor Resistance | 86.2 Ω/km |
