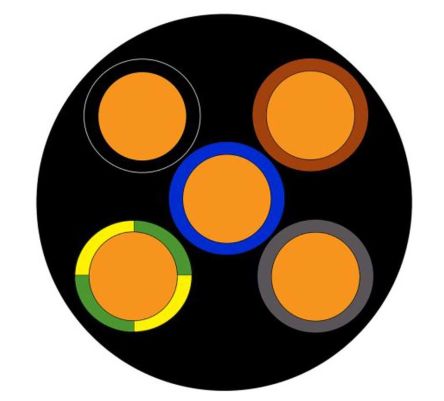

RS PRO 5 Core 1.5 mm² Mains Power Cable, Polyvinyl Chloride PVC Sheath 100m, 20 A 300/500 V, TUF; 675-5668
Mã kho: 6755668
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 1.5 mm² |
| Current Rating | 20 A |
| Length | 100m |
| Voltage Rating | 300/500 V |
| Outer Diameter | 10.5mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Type | TUF |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Conductor Strand Type | Solid |
| Insulation Material | PVC |
| Standards Met | BS 6360 Class 1, BS 6500, BS EN 50363, RoHS Compliant |
| Size of Strands | 1.38 mm |
| American Wire Gauge | 15 AWG |
| Conductor Material | Bare Copper |
| Conductor Resistance | 12.5 Ω/km |
