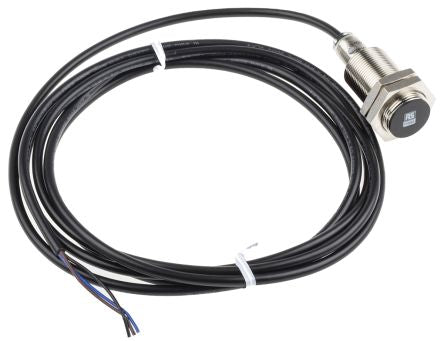

RS PRO, M18 x 1, NPN-NO Inductive Sensor 48mm Length, 10 → 30 V dc supply voltage , IP67 Rating; 701-8222
Mã kho: 7018222
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M18 x 1 |
| Output Type | NPN-NO |
| Detection Range | 5 mm |
| Terminal Type | Cable |
| Supply Voltage | 10 → 30 V dc |
| Length | 48mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| IP Rating | IP67 |
| Switching Current | 200 mA |
| Housing Material | Nickel Plated Brass |
| Maximum Switching Frequency | 1kHz |
| Minimum Operating Temperature | -25°C |
| Standards Met | CULus Listed, EN 60947-5-2, RoHS Compliant, UL |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Maximum Operating Temperature | +75°C |
