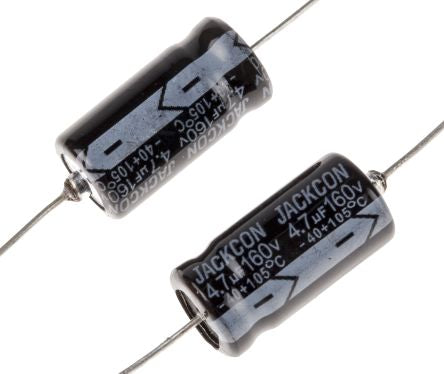

RS PRO 4.7μF 160V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 16mm +105°C 8mm 16mm; 707-6360
Mã kho: 7076360
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 µF |
| Voltage | 160 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 16mm |
| Height | 16mm |
| Length | 16mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Series | RS |
| Polarised | Polar |
| Leakage Current | <=0.03 CV or 4 μA @ 5 min |
| Ripple Current | 36mA |
| Tolerance | ±20% |
| Dissipation Factor | 0.15 |
