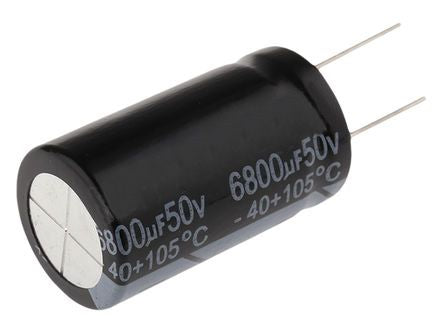

RS PRO 6800μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 25 (Dia.) x 44mm +105°C 25mm 12mm 44mm; 711-1539
Mã kho: 7111539
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 6800 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 25 (Dia.) x 44mm |
| Height | 44mm |
| Length | 44mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 25mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 12mm |
| Lifetime | 2000h |
| Series | RS |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min |
| Dissipation Factor | 0.1 |
| Ripple Current | 2.28A |
| Tolerance | ±20% |
| Polarised | Polar |
