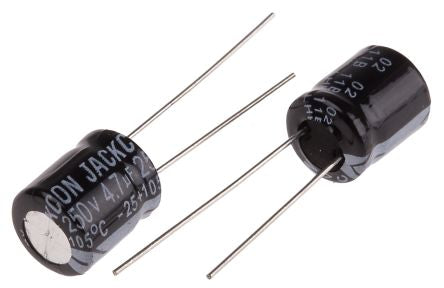

RS PRO 4.7μF 250V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 12mm +105°C 10mm 5mm 12mm; 711-1914
Mã kho: 7111914
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 µF |
| Voltage | 250 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 12mm |
| Height | 12mm |
| Length | 12mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 2000h |
| Series | RS |
| Polarised | Polar |
| Leakage Current | <=0.03 CV or 3 μA @ 1 min |
| Dissipation Factor | 0.16 |
| Ripple Current | 51mA |
| Tolerance | ±20% |
