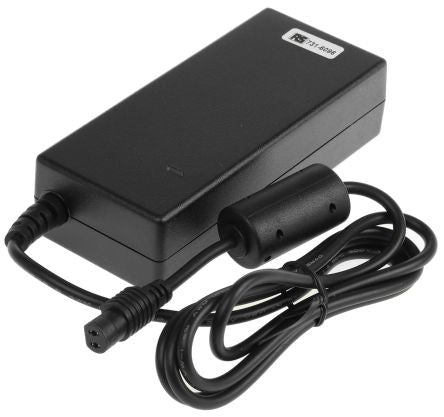

RS PRO 24V dc Power Supply, 3.125A, C8 Connector; 731-6096
Mã kho: 7316096
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 100 → 240 V ac |
| Output Voltage Rating | 24 V dc |
| Output Current Range | 3.125A |
| Rated Output Power | 75W |
| Input Connector | IEC320-C8 |
| Output Connection Type | 1.75 x 4.75 x 11 mm Centre Positive Female Coaxial Plug, 2.1 x 5.5 x 10.5 mm Centre Positive Female Coaxial Plug, 2.5 x 5.5 x 12.5 mm Centre Positive Female Coaxial Plug, 3 x 6.3 x 12 mm Centre Positive Female Coaxial Plug |
| Number of Outputs | 1 |
| Plug Type | C8 |
| Load Regulation Range | ±5% |
| Minimum Temperature | 0°C |
| Operating Temperature Range | 0 → +40 °C |
| Holdup Time | ≥8.3ms |
| Overall Depth | 30mm |
| Maximum Temperature | +40°C |
| Cable Length | 1200mm |
| Standards Met | ErP Compliant |
| Overall Width | 50mm |
| Energy Efficiency Level | V |
| Overall Dimensions | 116 x 50 x 30mm |
| Weight | 290g |
| Overall Length | 116mm |
| Efficiency | 0.87 |
