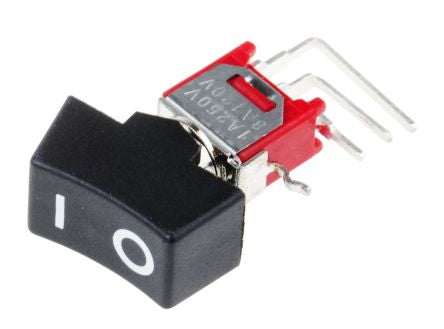

RS PRO Single Pole Double Throw (SPDT), Latching Rocker Switch Panel Mount; 734-6902
Mã kho: 7346902
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 15.75mm |
| Panel Cut Out Height | 8.89mm |
| Contact Current Rating | 3 A @ 120 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Right Angle PC Pin |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Rectangular |
| Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Panel Cut Out Size | 8.89 x 15.75mm |
| Mechanical Life | 30000Operations |
| Operating Temperature Range | -30 → +85°C |
| Contact Material | Silver Plated Brass |
| AC Voltage Rating | 125 V, 250 V |
| Case Material | Diallyl Phthalate |
