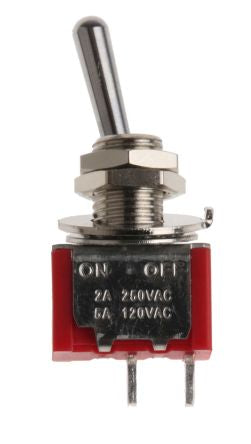

RS PRO Single Pole Single Throw (SPST) Toggle Switch, Latching, Panel Mount; 734-7154
Mã kho: 7347154
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Latching |
| Contact Current Rating | 5 A @ 28 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Width | 6.86mm |
| Panel Cut Out Height | 12.7mm |
| Actuator Length | 10.4mm |
| Actuator Material | Chrome Plated Brass |
| Voltage Rating | 28V dc |
| Contact Resistance | 10mΩ |
| Contact Material | Silver Gold Plated Brass |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 +85°C |
| Maximum Operating Temperature | +85°C |
| Standards Met | RoHS & Lead Free |
| Mechanical Life | 40000Cycles |
| Panel Cut Out Size | 12.7 x 6.86mm |
