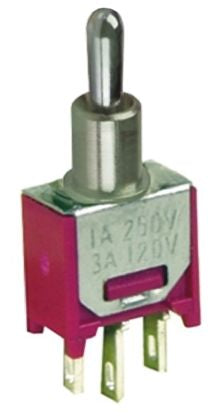

RS PRO Single Pole Double Throw (SPDT) Toggle Switch, Latching, Panel Mount; 734-7211
Mã kho: 7347211
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | Latching |
| Contact Current Rating | 3 A @ 120 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 4.95mm |
| Actuator Length | 9.4mm |
| Actuator Material | Chromium Plated Brass |
| Contact Resistance | 20mΩ |
| Minimum Operating Temperature | -30°C |
| Contact Material | Silver Plated Brass |
| Mechanical Life | 30000Cycles |
| Operating Temperature Range | -30 +85°C |
| Panel Cut Out Size | 4.95mm |
| Standards Met | RoHS & Lead Free |
| Maximum Operating Temperature | +85°C |
