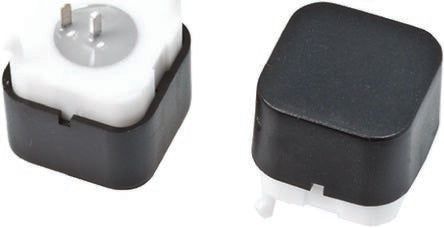

Black Cap Tactile Switch, Single Pole Single Throw (SPST) 30 mA @ 28 V dc 2mm; 734-7353
Mã kho: 7347353
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 2mm |
| Actuator Colour | Black |
| Actuator Type | Cap |
| Length | 12.4mm |
| Width | 12.4mm |
| Dimensions | 12.4 x 12.4 x 13.6mm |
| Contact Current Rating | 30 mA @ 28 V dc |
| Operating Force | 6.4 N |
| Maximum Operating Temperature | +95°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Plated Brass |
| Operating Temperature Range | -40 → +95°C |
| Voltage Rating | 28V dc |
