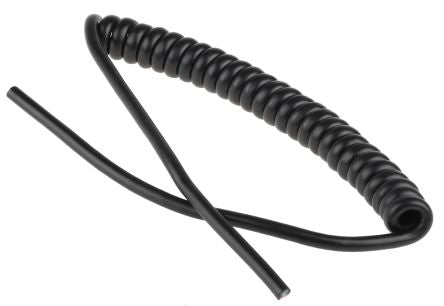

160mm 15 Core Coiled Cable 0.05 mm² CSA Polyvinyl Chloride PVC Sheath Black, 5.2mm OD; 749-2497
Mã kho: 7492497
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 15 |
| Length | 160mm |
| Cross Sectional Area | 0.05 mm² |
| Voltage Rating | 100 V |
| Sheath Colour | Black |
| Coil Diameter | 17mm |
| Extended Length | 1.5m |
| Sheath Material | Polyvinyl Chloride PVC |
| Current Rating | 250 mA |
| Number of Strands | 7 |
| Outer Diameter | 5.2mm |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +75°C |
| Cable Shape | Multicore |
| Conductor Material | Bare Copper |
| Insulation Material | PVC |
| Core Strands | 7/0.1 mm |
| Size of Strands | 0.1 mm |
| Uncoiled Length | 320 mm |
| Conductor Resistance | 337 Ω/Km |
