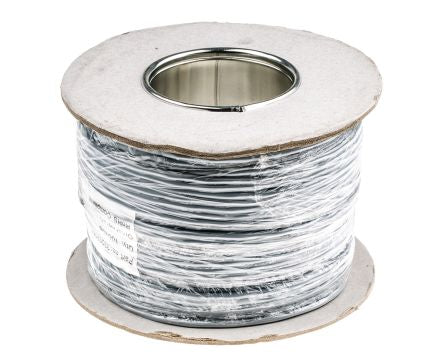

RS PRO 100m 2 Core Screened Grey Microphone Cable, 30 V, 3.7mm od , 0.14 mm² CSA; 749-2563
Mã kho: 7492563
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.14 mm² |
| Screened/Unscreened | Screened |
| Insulation Material | PE |
| Outer Diameter | 3.7mm |
| Reel Length | 100m |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 60°C |
| Bedding Material | Mylar |
| Voltage Rating | 30 V |
| Conductor Material | Copper |
| Core Strands | 18/0.1 mm |
| Conductor Strand Type | Stranded |
| Number of Strands | 18 |
| Sheath Colour | Grey |
| Size of Strands | 0.1 mm |
| Capacitance Core To Screen | 90pF/m |
| Capacitance Core To Core | 140pF/m |
| Screen Type | Twin Lapped Screen |
| Conductor Resistance | 132 Ω/km |
| American Wire Gauge | 26 AWG |
| Sheath Material | Polyvinyl Chloride PVC |
| Cable Shape | Multicore |
| Length | 100m |
| Filler Material | Cotton |
