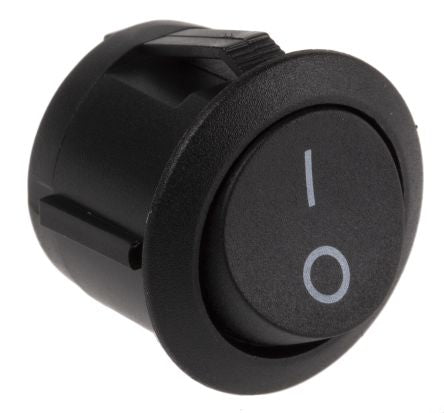

RS PRO Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount; 793-2563
Mã kho: 7932563
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 20.8mm |
| Panel Cut Out Height | 20.6mm |
| Panel Cut Out Diameter | 20mm |
| Contact Current Rating | 5 A @ 250 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Round |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -25°C |
| Contact Resistance | 30mΩ |
| Panel Cut Out Size | 20.6 x 20.8mm |
| Operating Temperature Range | -25 → +125°C |
| Mechanical Life | 10000Operations |
| Maximum Operating Temperature | +125°C |
| Case Material | Nylon |
| AC Voltage Rating | 250V |
