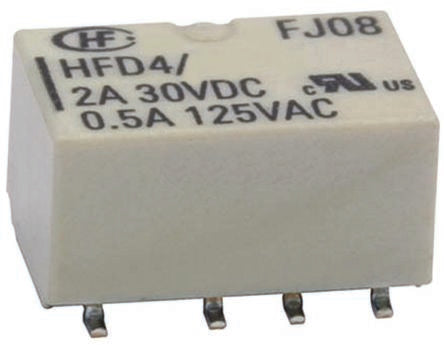

RS PRO DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 2 A Subminiature Signal Relay; 800-4536
Mã kho: 8004536
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 24 V dc |
| Coil Power | 200mW |
| Coil Resistance | 70 mΩ |
| Isolation Coil To Contact | 1.6kV ac |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Terminal Type | Surface Mount |
| Number of Poles | 2 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Depth | 6.5mm |
| Maximum Switching Power DC | 60 W |
| Standards Met | CULus E133481, RoHS Compliant |
| Maximum Switching Power AC | 62.5 VA |
| Length | 10mm |
| Height | 5.65mm |
