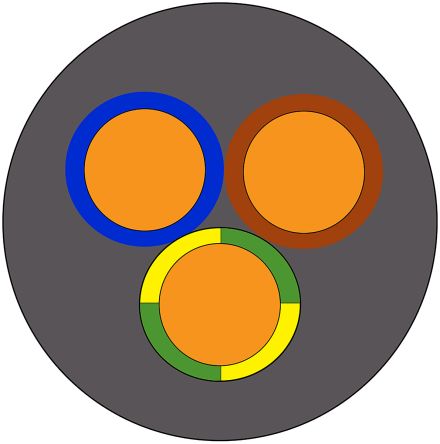

RS PRO 3 Core 2.5 mm² Power Cable, Grey Polyvinyl Chloride PVC Sheath 100, 20 A 300 V, 500 V, 3183Y H05VV-F; 811-4387
Mã kho: 8114387
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 2.5 mm² |
| Sheath Colour | Grey |
| Current Rating | 20 A |
| Length | 100 |
| Voltage Rating | 300 V, 500 V |
| Outer Diameter | 11.4mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Type | 3183Y |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
| Conductor Strand Type | Solid |
| Harmonised Code | H05VV-F |
| American Wire Gauge | 13 AWG |
| Conductor Resistance | 7.98 Ω/km |
| Insulation Material | PVC Type TI1 to BS7655 |
| Number of Strands | 50 |
| Standards Met | BS EN 50525 |
| Core Strands | 50/0.25 mm |
| Size of Strands | 0.25 mm |
| Conductor Material | Copper |
