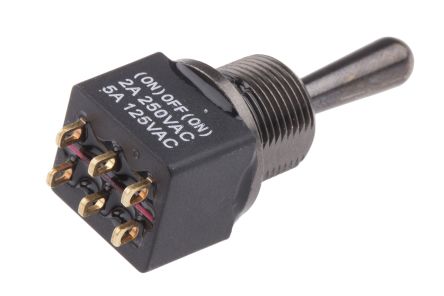

RS PRO Double Pole Double Throw (DPDT) Toggle Switch, (On)-Off-(On), IP67, PCB; 820-0510
Mã kho: 8200510
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | (On)-Off-(On) |
| Contact Current Rating | 5 A @ 250 V ac |
| Mounting Type | PCB |
| Terminal Type | Solder |
| IP Rating | IP67 |
| Actuator Length | 18mm |
| Actuator Material | Brass |
| Contact Resistance | 10mΩ |
| Contact Material | Silver |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 +85°C |
| Mechanical Life | 50000Cycles |
| Maximum Operating Temperature | +85°C |
| Standards Met | MIL-STD-202F |
