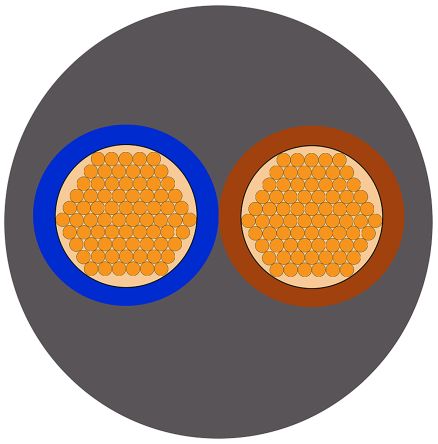

RS PRO 2 Core 0.75 mm² Power Cable, Polyvinyl Chloride PVC Sheath 100, 300 V, 2192Y H03VVH2-F; 841-2265
Mã kho: 8412265
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.75 mm² |
| Length | 100 |
| Voltage Rating | 300 V |
| Outer Diameter | 3.8 x 6.3mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Type | 2192Y |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | 70°C |
| Conductor Strand Type | Stranded |
| Harmonised Code | H03VVH2-F |
| Insulation Material | PVC |
| Conductor Resistance | 26 Ω/km |
| American Wire Gauge | 18 AWG |
| Number of Strands | 22 |
| Size of Strands | 0.2 mm |
| Core Strands | 22/0.2 mm mm |
| Standards Met | RoHS Compliant |
