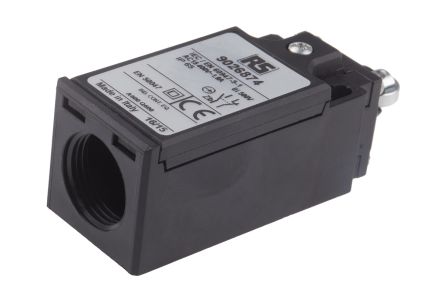

IP65 Snap Limit Switch Roller Plunger Thermoplastic Fibreglass, NO/NC, 400V; 902-6874
Mã kho: 9026874
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Roller Plunger |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP65 |
| Maximum Current | 0.416666666666667 |
| Housing Material | Thermoplastic Fibreglass |
| Maximum AC Voltage | 400V |
| Maximum DC Voltage | 250V |
| Connection Type | Cable |
| Contact Type | Snap |
| Terminal Type | Screw |
| Length | 30.3mm |
| Width | 84mm |
| Mechanical Life Minimum | 15000000 Operations |
| Depth | 30mm |
| Dimensions | 30.3 x 84 x 30 mm |
| Standards Met | CE, CSA, RU, UL |
| Operating Force | 12N |
| Minimum Operating Temperature | -25°C |
| Mounting Orientation | Vertical |
| Maximum Operating Temperature | +70°C |
