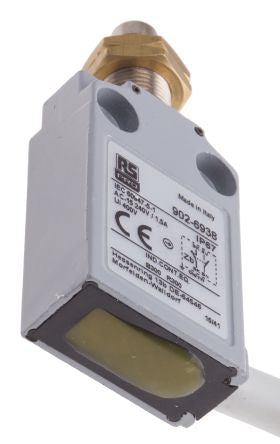

IP67 Snap Limit Switch Plunger Die Cast Zinc Alloy, Thermoplastic, NO/NC, 240V; 902-6938
Mã kho: 9026938
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 0.208333333333333 |
| Housing Material | Die Cast Zinc Alloy, Thermoplastic |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | Cable |
| Contact Type | Snap |
| Terminal Type | Wire Lead |
| Length | 31.5mm |
| Width | 74mm |
| Depth | 16mm |
| Operating Force | 15N |
| Dimensions | 31.5 x 74 x 16 mm |
| Standards Met | CE, CSA, RU, UL |
| Minimum Operating Temperature | -25°C |
| Mounting Orientation | Vertical |
| Maximum Operating Temperature | +70°C |
| Mechanical Life Minimum | 10000000 Operations |
