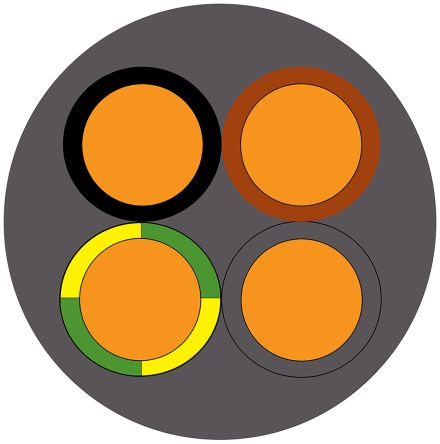

RS PRO 4 Core 1.5 mm² Power Cable, Grey Polyvinyl Chloride PVC Sheath 100m, 500 V, NYM-J; 902-8331
Mã kho: 9028331
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 1.5 mm² |
| Sheath Colour | Grey |
| Length | 100m |
| Voltage Rating | 500 V |
| Outer Diameter | 11.5mm |
| Sheath Material | Polyvinyl Chloride PVC |
| Type | NYM-J |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +70°C |
| Conductor Strand Type | Solid |
| Fire Behaviour | Flame Retardant |
| Standards Met | HD 21.4 S2, IEC 60228 Class1, IEC 60332-1 |
| Size of Strands | 1.365 mm |
| Conductor Resistance | 12.1 Ω/km |
| Insulation Material | PVC |
