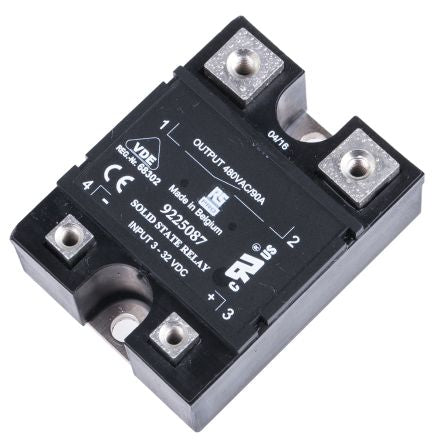

RS PRO 90 A rms SPNO Solid State Relay, Zero Cross, Panel Mount, Thyristor, 480 V ac Maximum Load; 922-5087
Mã kho: 9225087
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.4 A |
| Maximum Load Current | 90 A rms |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 480 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Contact Configuration | SPNO |
| Terminal Type | Screw |
| Output Device | Thyristor |
| Maximum Turn On Time | 11 ms |
| Dimensions | 57.2 x 44.5 x 23mm |
| Standards Met | CE, CULus, VDE |
| Height | 23mm |
| Length | 57.2mm |
| Off State Leakage Current | 10 mA |
| Load Voltage Range | 24 → 480V ac |
| Operating Temperature Range | -20 → +80°C |
| Control Voltage Range | 3 → 32 V dc |
| Depth | 44.5mm |
| Number of Poles | 1 |
| Relay Type | AC |
| Special Features | Hockey Puck Housing, Panel Mounted |
