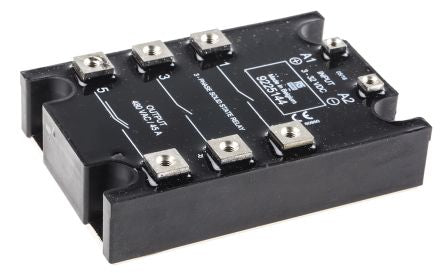

RS PRO 45 A rms 3P-NO Solid State Relay, Zero Cross, Panel Mount, Thyristor, 480 V ac Maximum Load; 922-5144
Mã kho: 9225144
Tên nhà sản xuất:
RS PRO
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.4 A |
| Maximum Load Current | 45 A rms |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 480 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Contact Configuration | 3P-NO |
| Terminal Type | Screw |
| Output Device | Thyristor |
| Maximum Turn On Time | 11 ms |
| Dimensions | 107 x 73.5 x 27mm |
| Operating Temperature Range | -20 → +80°C |
| Load Voltage Range | 24 → 480V ac |
| Off State Leakage Current | 10 mA |
| Length | 107mm |
| Height | 27mm |
| Standards Met | CE |
| Special Features | Its able to Switch Three Phase Loads with One Control Signal up to Rated Line Currents of 45A and Line Voltages up to 480Vac, Maxi Puck Housing, Panel Mounted, The WG A3 has High Noise Immunity and an Internal Overvoltage Protection which becomes Effective at 1000 V |
| Relay Type | AC |
| Number of Poles | 3 |
| Depth | 73.5mm |
| Control Voltage Range | 3 → 32 V dc |
