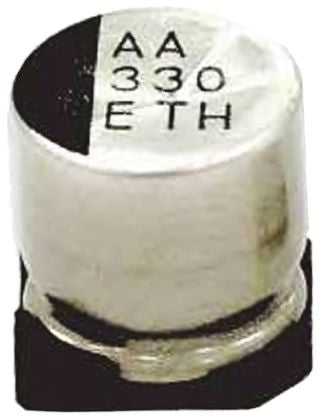

Rubycon 100μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 8 x 10.5mm +125°C 8mm [25THV100M8X10.5]; 767-3056
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 x 10.5mm |
| Height | 10.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 3000h |
| Series | THV |
| Equivalent Series Resistance | 300mΩ |
| Tolerance | ±20% |
| Ripple Current | 300mArms |
| Leakage Current | 0.01 CV/3 μA (After 2 min) |
| Polarised | Polar |
