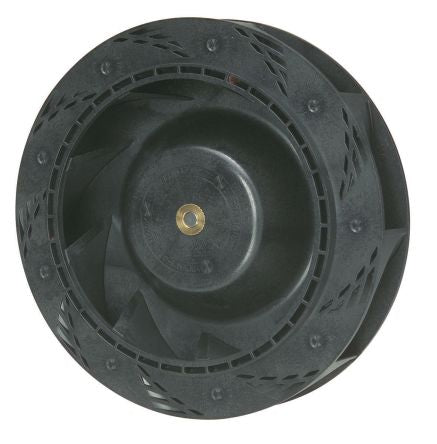

Sanyo Denki San Ace 9TN Series Centrifu [9TN24P1H01]; 191-9433
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| Blower Type | Centrifugal |
| AC or DC Operation | DC |
| Air Flow | 135cfm |
| Series | San Ace C150 |
| Height | 150mm |
| Width | 150mm |
| Depth | 35mm |
| Dimensions | 150 x 150 x 35mm |
| Fan Speed | 3800rpm |
| Noise Level | 59dB(A) |
| Mounting Hole Spacing | 64mm |
| Termination Type | Lead Wire |
| Vertical Hole Spacing | 64mm |
| Direction of Curve | Forward |
| Mounting Hole Diameter | 4mm |
| Maximum Current | 620mA |
| Static Pressure | 410Pa |
| Horizontal Hole Spacing | 64mm |
| Inlet Diameter | 105mm |
| Sensor Output Type | PWM |
| Special Features | For 1 Minute, Impeller:Plastic (Flammability: UL 94V-0), Locked Rotor Burnout Protection, Motor Case:Aluminum (Black Coating), Reverse Polarity Protection, 50/60 Hz, 500 VAC |
