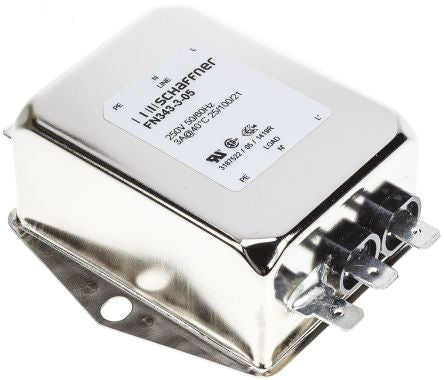

Schaffner FN 343 Series 3A 250 V ac 400Hz Chassis Mount RFI Filter, with Tab Terminals [FN 343-3/05]; 123-0426
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Series | FN 343 |
| Number of Stages | Two Stage |
| Operating Frequency | 400Hz |
| Length | 70mm |
| Capacitance | 2.2 nF, 100 nF |
| Height | 30.3mm |
| Inductance | 1.1 mH, 2 mH, 400 μH |
| Leakage Current | 0.34 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
