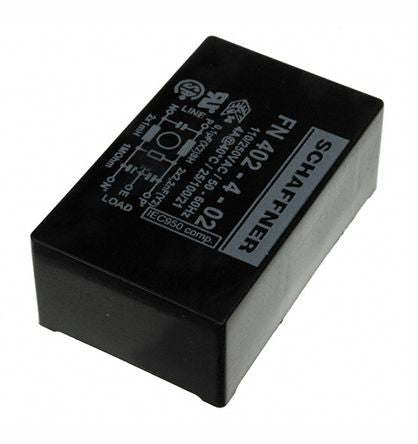

Schaffner FN402 Series 4A 250 V ac 400Hz Through Hole RFI Filter, with Pin Terminals [FN 402-4/02]; 217-0791
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 4A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Through Hole |
| Termination Style | Pin |
| Series | FN402 |
| Number of Stages | Single Stage |
| Operating Frequency | 400Hz |
| Length | 45mm |
| Depth | 28mm |
| Capacitance | 2.2 nF, 100 nF |
| Height | 16.5mm |
| Dimensions | 45 x 28 x 16.5mm |
| Inductance | 1 mH |
| Leakage Current | 0.373 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
