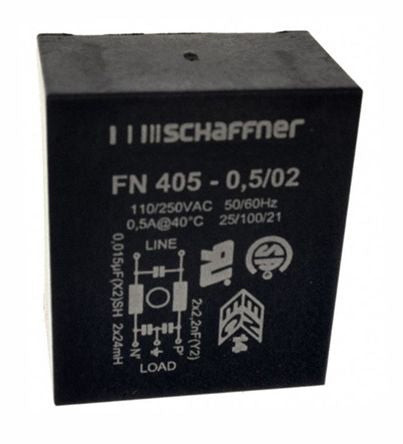

Schaffner FN405 Series 500mA 250 V ac 400Hz RFI Filter, with Pin Terminals [FN 405 0.5/02]; 123-0224
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 500mA |
| Maximum Voltage Rating | 250 V ac |
| Termination Style | Pin |
| Number of Stages | Single Stage |
| Series | FN405 |
| Operating Frequency | 400Hz |
| Length | 36mm |
| Depth | 31mm |
| Capacitance | 2.2 nF, 15 nF |
| Height | 19.5mm |
| Dimensions | 36 x 31 x 19.5mm |
| Inductance | 24 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.373 mA |
| Maximum Operating Temperature | +100°C |
